checksPublishResults¶

Description¶

This step can publish static check results from various sources.

Prerequisites¶

static check result files - To use this step, there must be static check result files available.
installed warnings-ng plugin

Parameters¶

name	mandatory	default	possible values
`aggregation`	no		`true`, `false`, `Map`
`archive`	no	`false`	`true`, `false`
`checkstyle`	no	`[pattern:**/target/checkstyle-result.xml, archive:true, active:false, qualityGates:[[threshold:1, type:TOTAL_HIGH, unstable:false], [threshold:1, type:TOTAL_ERROR, unstable:false]]]`	`true`, `false`, `Map`
`cpd`	no	`[pattern:**/target/cpd.xml, archive:true, active:false, qualityGates:[[threshold:1, type:TOTAL_HIGH, unstable:false], [threshold:1, type:TOTAL_ERROR, unstable:false]]]`	`true`, `false`, `Map`
`eslint`	no	`[pattern:**/eslint.xml, archive:true, active:false, qualityGates:[[threshold:1, type:TOTAL_HIGH, unstable:false], [threshold:1, type:TOTAL_ERROR, unstable:false]]]`	`true`, `false`, `Map`
`failOnError`	no	`false`	`true`, `false`
`findbugs`	no	`[pattern:/target/findbugsXml.xml, /target/findbugs.xml, archive:true, active:false, qualityGates:[[threshold:1, type:TOTAL_HIGH, unstable:false], [threshold:1, type:TOTAL_ERROR, unstable:false]]]`	`true`, `false`, `Map`
`pmd`	no	`[pattern:**/target/pmd.xml, archive:true, active:false, qualityGates:[[threshold:1, type:TOTAL_HIGH, unstable:false], [threshold:1, type:TOTAL_ERROR, unstable:false]]]`	`true`, `false`, `Map`
`pylint`	no	`[pattern:**/pylint.log, archive:true, active:false, qualityGates:[[threshold:1, type:TOTAL_HIGH, unstable:false], [threshold:1, type:TOTAL_ERROR, unstable:false]]]`	`true`, `false`, `Map`
`script`	yes
`tasks`	no	`[pattern:*/.java, low:, normal:TODO,REVISE,XXX, high:FIXME, archive:true, active:false, qualityGates:[[threshold:1, type:TOTAL_HIGH, unstable:false], [threshold:1, type:TOTAL_ERROR, unstable:false]]]`	`true`, `false`, `Map`

aggregation - Allows to publish the check results.
archive - If it is set to true the step will archive reports matching the tool specific pattern.
checkstyle - Publishes Checkstyle findings with the Checkstyle plugin.
cpd - Publishes CPD findings with the DRY plugin.
eslint - Publishes ESLint findings (in JSLint format) with the Warnings plugin.
failOnError - If it is set to true the step will fail the build if JUnit detected any failing tests.
findbugs - Publishes Findbugs findings with the Findbugs plugin.
pmd - Publishes PMD findings with the PMD plugin.
pylint - Publishes PyLint findings with the Warnings plugin, pylint needs to run with --output-format=parseable option.
script - The common script environment of the Jenkinsfile running. Typically the reference to the script calling the pipeline step is provided with the this parameter, as in script: this. This allows the function to access the commonPipelineEnvironment for retrieving, e.g. configuration parameters.
tasks - Searches and publishes TODOs in files with the Task Scanner Plugin.

aggregation¶

deprecated, do not use

tasks¶

parameter	mandatory	default	possible values
pattern	no	`'*/.java'`
archive	no	`true`	`true`, `false`
high	no	`'FIXME'`
normal	no	`'TODO,REVISE,XXX'`
low	no
qualityGates	no	`[[threshold: 1, type: 'TOTAL_HIGH', unstable: false], [threshold: 1, type: 'TOTAL_ERROR', unstable: false]]`	see QualityGates

pmd¶

parameter	mandatory	default	possible values
pattern	no	`'**/target/pmd.xml'`
archive	no	`true`	`true`, `false`
qualityGates	no	`[[threshold: 1, type: 'TOTAL_HIGH', unstable: false], [threshold: 1, type: 'TOTAL_ERROR', unstable: false]]`	see QualityGates

cpd¶

parameter	mandatory	default	possible values
pattern	no	`'**/target/cpd.xml'`
archive	no	`true`	`true`, `false`
qualityGates	no	`[[threshold: 1, type: 'TOTAL_HIGH', unstable: false], [threshold: 1, type: 'TOTAL_ERROR', unstable: false]]`	see QualityGates

findbugs¶

parameter	mandatory	default	possible values
pattern	no	`'/target/findbugsXml.xml, /target/findbugs.xml'`
archive	no	`true`	true, false
qualityGates	no	`[[threshold: 1, type: 'TOTAL_HIGH', unstable: false], [threshold: 1, type: 'TOTAL_ERROR', unstable: false]]`	see QualityGates

checkstyle¶

parameter	mandatory	default	possible values
pattern	no	`'**/target/checkstyle-result.xml'`
archive	no	`true`	`true`, `false`
qualityGates	no	`[[threshold: 1, type: 'TOTAL_HIGH', unstable: false], [threshold: 1, type: 'TOTAL_ERROR', unstable: false]]`	see QualityGates

eslint¶

parameter	mandatory	default	possible values
pattern	no	`'**/eslint.jslint.xml'`
archive	no	`true`	`true`, `false`
qualityGates	no	`[[threshold: 1, type: 'TOTAL_HIGH', unstable: false], [threshold: 1, type: 'TOTAL_ERROR', unstable: false]]`	see QualityGates

pylint¶

parameter	mandatory	default	possible values
pattern	no	`'**/pylint.log'`
archive	no	`true`	`true`, `false`
qualityGates	no	`[[threshold: 1, type: 'TOTAL_HIGH', unstable: false], [threshold: 1, type: 'TOTAL_ERROR', unstable: false]]`	see QualityGates

Step configuration¶

We recommend to define values of step parameters via config.yml file.

In following sections of the config.yml the configuration is possible:

parameter	general	step/stage
`aggregation`		X
`archive`		X
`checkstyle`		X
`cpd`		X
`eslint`		X
`failOnError`		X
`findbugs`		X
`pmd`		X
`pylint`		X
`script`
`tasks`		X

Dependencies¶

The step depends on the following Jenkins plugins

Transitive dependencies are omitted.

The list might be incomplete.

Consider using the ppiper/jenkins-master docker image. This images comes with preinstalled plugins.

QualityGates¶

It is possible to define quality gates to set the build result to FAILURE (not stop the build) on a certain count of findings. To achieve this, just define your quality gates as followed for the specific check tool:

qualityGates: [
  [threshold: 1, type: 'TOTAL_HIGH', unstable: false],
  [threshold: 10, type: 'TOTAL_NORMAL', unstable: false],
  [threshold: 100, type: 'TOTAL_LOW', unstable: false],
  [threshold: 1000, type: 'TOTAL', unstable: false],
]

This way, the quality gate will fail on 1 high issue, 10 normal issues, 100 low issues or a total issue count of 1000.

The qualityGates parameter can be set for tasks, pmd, cpd, findbugs, checkstyle, eslint and pylint.

checksPublishResults(
    tasks: true,
    pmd: [pattern: '**/target/pmd-results.xml', qualityGates: [[threshold: 101, type: 'TOTAL_LOW', unstable: true]]],
    cpd: [archive: false],
    archive: true
)

See also the official plugin documentation for further information.

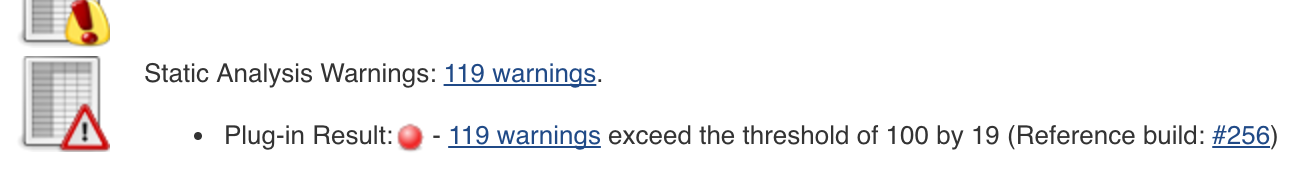

StaticChecks Thresholds

Side effects¶

none

Exceptions¶

none

Example¶

// publish java results from pmd, cpd, checkstyle & findbugs
checksPublishResults archive: true, pmd: true, cpd: true, findbugs: true, checkstyle: true

// publish javascript results from ESLint
checksPublishResults archive: true, eslint: [pattern: '**/result-file-with-fancy-name.xml']

// publish scala results from scalastyle
checksPublishResults archive: true, checkstyle: [pattern: '**/target/scalastyle-result.xml']

// publish python results from pylint
checksPublishResults archive: true, pylint: [pattern: '**/target/pylint.log']
